17. VxWorks Guest

17.1. Installation

To be able to configure the VxWorks OS and create own VxWorks binary images, the VxWorks hypervisor support files have to be copied into the VxWorks installation folder.

17.1.1. VxWorks 7 SR630

Copy the folder vxwin_common-2.0.0.1 into %WIND_HOME%\vxworks-7\pkgs_v2\os\psl\intel

Copy the folder vxwin_generic-2.0.0.1 into %WIND_HOME%\vxworks-7\pkgs_v2\os\board\intel

17.1.1.1. Create the VxWorks SR630 Source Build (VSB)

Based on Category: All
Based on: a VxWorks 7 board support package
Active CPU: Pentium4
Baseline: SR0630 2019-11-08
BSP: vxwin_generic_2_0_0_1
Processor mode: UP support in Libraries
VSB Profile: Development

17.1.1.2. Create the VxWorks SR630 Image Project (VIP)

Based on Category: All
Based on: a source build project
Profile: PROFILE_DEVELOPMENT

17.1.2. VxWorks7 2403

Copy the folder itl_x86_rthv_common into %WIND_HOME%\vxworks\24.03\source\os\psl\intel

Copy the folder itl_rthv_generic into %WIND_HOME%\vxworks\24.03\source\os\arch\ia\board\intel

17.1.2.1. Create the VxWorks 2403 Source Build (VSB)

Based on Category: All
Based on a VxWorks board support package
BSP: itl_rthv_generic
Active CPU: Pentium4
VSB Profile: Minimal

17.1.2.2. Create the VxWorks 2403 Image Project (VIP)

Based on Category: All
Based on: a source build project
Profile: Development

17.2. VxWorks specific configuration parameters

Default settings are stored in guest.config file. User can override those setting in the usr.config file.

17.2.1. Network configuration

All network configuration parameters are stored in guest.config file under the [Rtos] key.

Entry Name	Type	Description
Bootline	String	VxWorks boot line.
Console	String	VxWorks device name which shall be used for the console interface
VnetMACAddress	String	Virtual Network Adapter MAC address.
VnetPollPeriod	Dword	Virtual Network Adapter polling period in timer ticks.
VnetPollPeriod	Dword	0 enables interrupt mode.
VnetNumCluster	Dword	Number of network clusters for the Virtual Network Adapter.
AddNetworkX	String	Additional network interface where the IP stack shall be attached to.
		X==0 (AddNetwork0): first additional interface.
		X==1 (AddNetwork1): second additional interface.
LogNetworkInterfaceX	String	Network interface for which the network packet logger shall be enabled.
		X==0 (LogNetworkInterface0): first interface for packet capturing.
		X==1 (LogNetworkInterface1): second interface for packet capturing.
LogNetworkFileX	String	File where the network packet log shall be stored.
LogNetworkFileX	String	X==0 (LogNetworkFile0), X==1 (LogNetworkFile1), etc.
LogNetworkFileMaxSizeX	Dword	Maximum capture file size in kByte. X corresponds to the specific file.

17.2.1.1. Bootline

As shown in the following example, the user may override the default VxWorks boot line by coding his/her own under the [rtos] key:
[rtos]
"Bootline" = "vnet(0,2)pc:vxWorks h=192.168.0.1 e=192.168.0.2 u=target pw=vxworks"

17.2.1.2. Console

By default, the last serial channel is connected with the RTOS VM’s virtual I/O channel. The VxWorks console will be redirected to the Target Console Window through the config file entry:
[Rtos]
"Console"="/vio/0"
Alternatively, the console can be redirected to any serial port – for example, the first port – using:
"/tyCo/0"

17.2.1.3. VnetMACAddress

The Virtual Network adapter address, also known as the MAC (Media Access Control) address, is generally specified in the following format:

"AA-BB-CC-DD-EE-02"

17.2.1.4. VnetPollPeriod

The Virtual Network driver by default operates in polling mode. The polling period can be adjusted using this parameter. It is set in units of the system clock timer. A value of 0 enables the interrupt mode:

"VnetPollPeriod" = "time units"

17.2.1.5. VnetNumCluster

Cluster size of the Virtual Network driver. In rare cases where extensive network traffic occurs, this parameter has to be increased:

"VnetNumCluster" = "size"

17.2.1.6. AddNetworkX

By default, the IP stack will be attached to the virtual network. If additional network adapters shall be under control of VxWorks, these adapters can be automatically attached to the IP stack using this parameter (the X has to be replaced by a contiguous number beginning with 0). The following example will attach the fei0 device (first instance of the Intel PRO/100 network adapter) to the IP stack. The IP address and subnet mask will be set accordingly:
[rtos]
"AddNetwork0"="fei0:192.168.100.1:255.255.255.0"

17.2.1.7. LogNetworkXxx

VxWin supports network packet logging which may help in solving network problems. The parameter LogNetworkInterfaceX selects the network interface where packets shall be captured. All captured packets will be stored in a file selected by the parameter LogNetworkFileX. The maximum size of the file is limited by the parameter LogNetworkFileMaxSizeX (kByte). The format of the file is compatible with PCAP:
[rtos]
"LogNetworkInterfaceX" = "interface name"
"LogNetworkFileX" = "filename"
"LogNetworkFileMaxSizeX" = "max size in kBytes"

17.3. Filesystem access via FTP

The filesystem of the hypervisor can be accessed via FTP. You need to adjust the VxWorks bootline so it matches the username and password of the hypervisor.

You may use the shell commands to verify if FTP access works:

cd "/host.pc"
ls

17.4. Filesystem access via NFS

An alternative to the FTP file access is using NFS. In a first step, the NFS server must be installed in the Hypervisor host, see NFS access The VxWorks image then must include NFS client support.

You will have to determine the UID and GID of the folder that is exported. In this example, we assume the /hv/guests folder is exported.

cd /hv
ls -ldn guests

The resulting output will show the UID and GID of the folder:

drwxr-xr-x 12 1000 1000 4096 Mai 23 19:53 .

The first column drwxr-xr-x represents the permissions of the folder.
The second column 12 is the number of hard links.
The third column 1000 is the UID of the folder owner.
The fourth column 1000 is the GID of the group owner.

In VxWorks, network authentication can be set then using nfsAuthUnixSet. The following example will use the host name pc which is determined in the bootline and the UID/GID determined before:

nfsAuthUnixSet("pc",1000,1000,0,0)

Using the nfsMount call a NFS share can be mounted:

nfsMount("pc","/hv/guests","/guests")

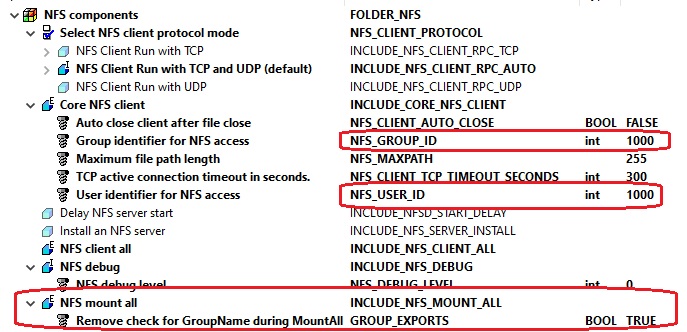

Alternatively, you can configure the VIP (VxWorks Image Project) to mount all available NFS shares automatically using the appropriate UID/GID values.

17.5. Autostart

You can place a startup script (e.g. startup.sh) in the guests sub folder files, e.g. into /hv/guests/guest0001/files. Then you need to add the s=/host.pc/hv/guests/guest0001/files/startup.sh parameter into the bootline (stored in guest.config in the guest folder).

This startup script then may load additional object modules and run an application. An example script may look as follows:

cd "/host.pc/hv/guests/guest0001/files"
ld<objmodule1.out
ld<objmodule2.out
sp myApp

17.6. RTOS Library

The RTOS library provides higher-level communication services for synchronizing Windows with VxWorks or to exchange data between the operating systems. The RTOS library is based on VMF-functions, which provide the basic communication functionality. A description of the RTOS Library can be found in the document RtosVM User Manual (see the acontis online Development Center and look for the VxWin manuals).
